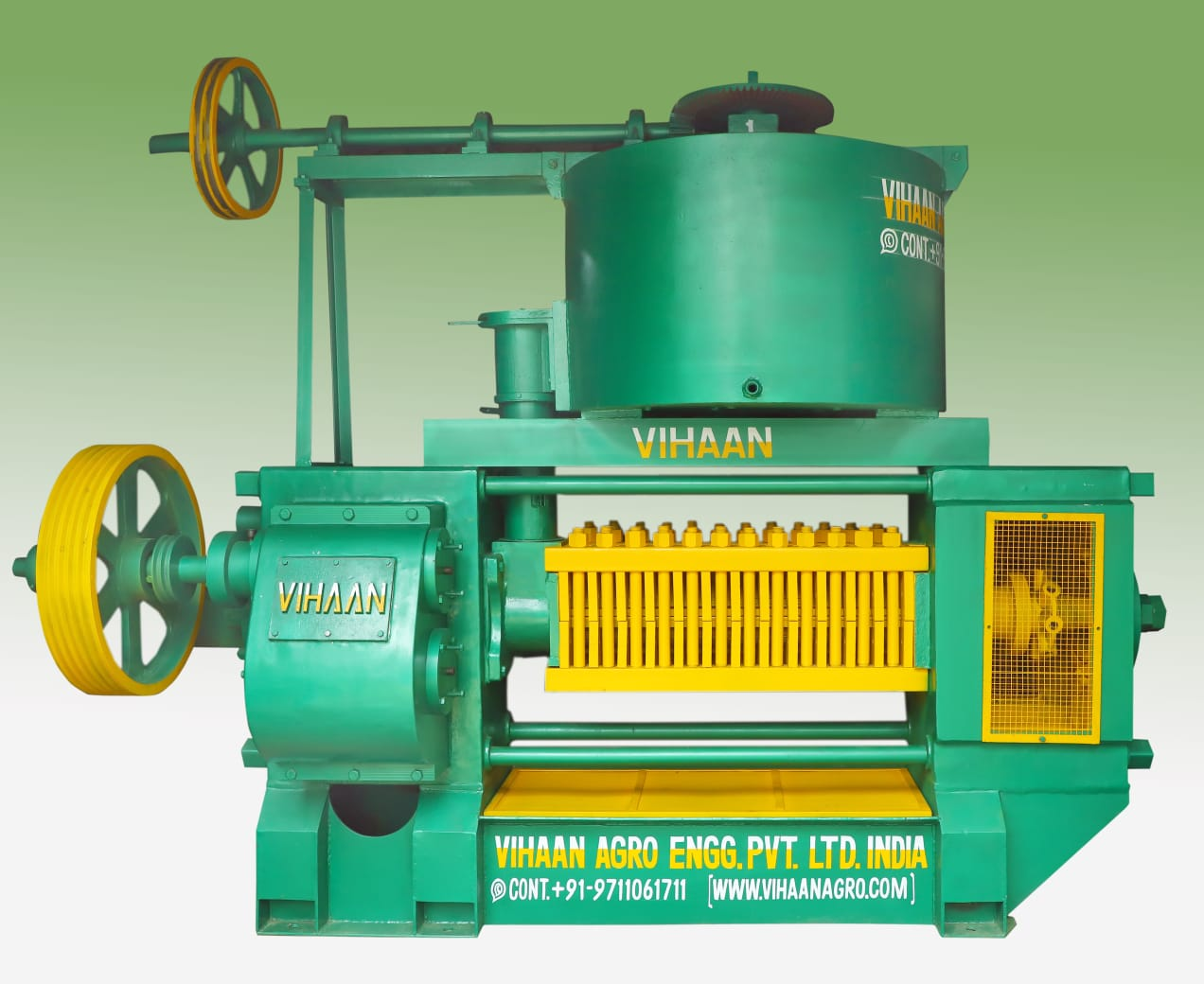

PRESS MODEL-VIHAAN 500
Salient Features of Expellers
- VHN 500 model has been designed for smooth and efficient operations to get the max output
- Mild Steel Fabricated Bodies and Base.
- The helical gear ensures low noise and reduced vibration during operation
- Mild steel Fabricated Press Cage
- Mild steel cast iron Press Cage
- All shafts are made of MS EN8 D
- Case hardened Worm Assembly
- Sturdy Body for Hassle Free Operations
- Double Jacketed Kettle with Best Heating Arrangements
- Main Worm Shaft Removal Without Disturbing Gear Assembly
- Cake Thickness can be Adjusted on Running Machine.
- Gear Box is aligned with the body on a single fabricated base.
PRESS MODEL-VIHAAN 500
TECHNICAL SPECIFICATION OF VIHAAN OIL PRESS (Model: VHN500 )
MODEL
VHN-500
CAPACITY
10/15 Ton

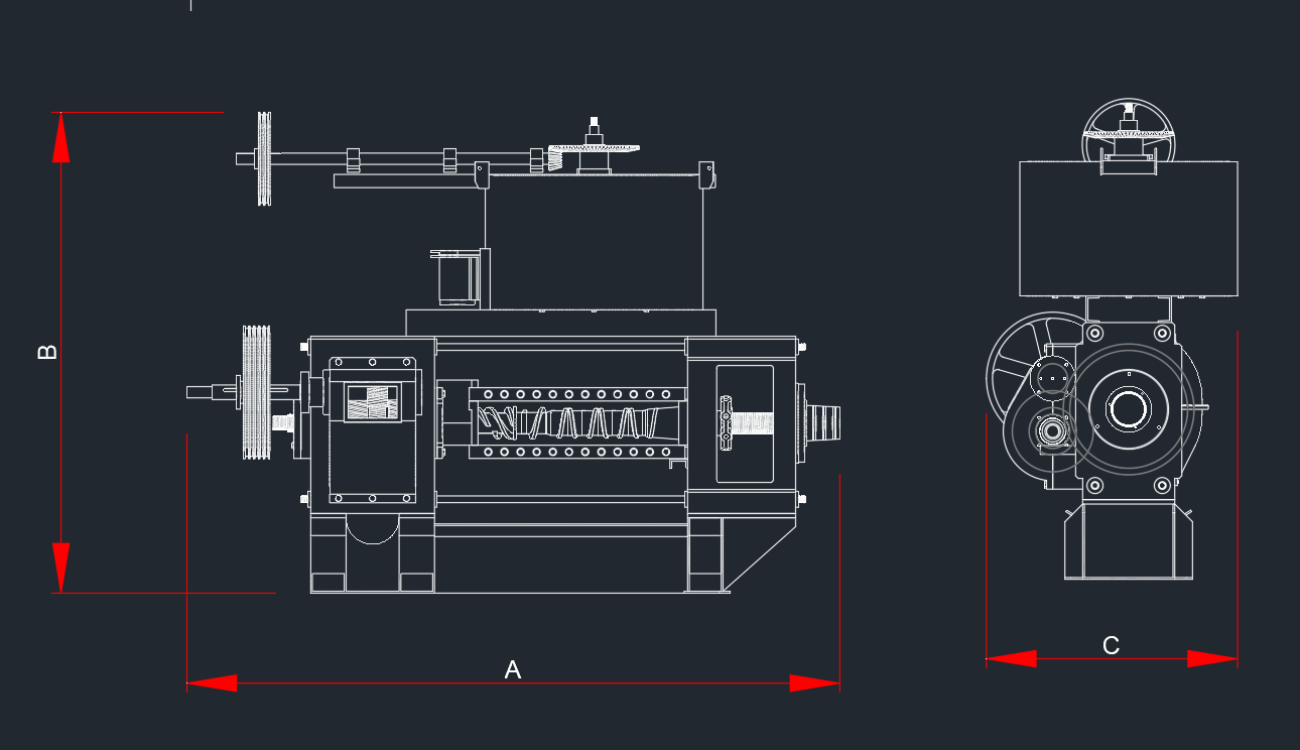

(A)LENGTH
3500 mm
(B)HEIGHT
2450 mm
(C) WIDTH
1420 mm
POWER
3PH 50HP 960rpm
WEIGHT
4800 KG
GEAR
MS EN8 353 E24
BEARING
ZWZ NTN NBC
ALL SHAFT
EN8D
WORM ASSEMBLY
MS/HARD FACE
CONE
MS/HARD FACE
COOKER
STEAM JACKETED/ MULTISTAGE COOKER
