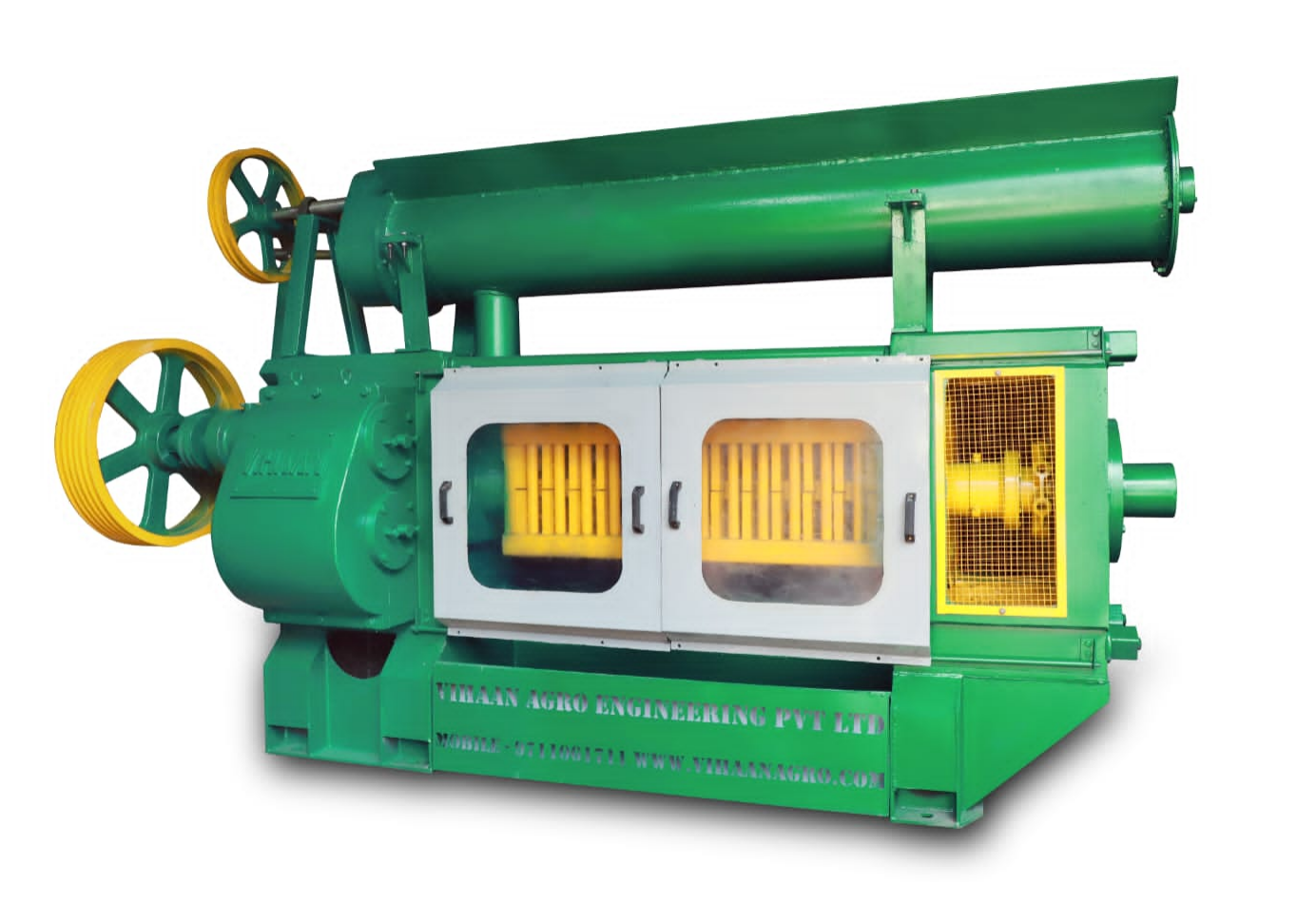

PRESS MODEL-VIHAAN 700
Salient Features of Expellers
- VHN 700 model has been designed for smooth and efficient operations to get the max output
- Mild Steel Fabricated Bodies and Base.
- The helical gear ensures low noise and reduced vibration during operation
- Mild steel Fabricated Press Cage
- Mild steel cast iron Press Cage
- All shafts are made of MS EN8 D
- Case hardened Worm Assembly
- Sturdy Body for Hassle Free Operations
- Double Jacketed Kettle with Best Heating Arrangements
- Main Worm Shaft Removal Without Disturbing Gear Assembly
- Cake Thickness can be Adjusted on Running Machine.
- Gear Box is aligned with the body on a single fabricated base.
PRESS MODEL-VIHAAN 700
TECHNICAL SPECIFICATION OF VIHAAN OIL PRESS (Model: VHN700 )
MODEL
VHN-700
CAPACITY
15/20 Ton

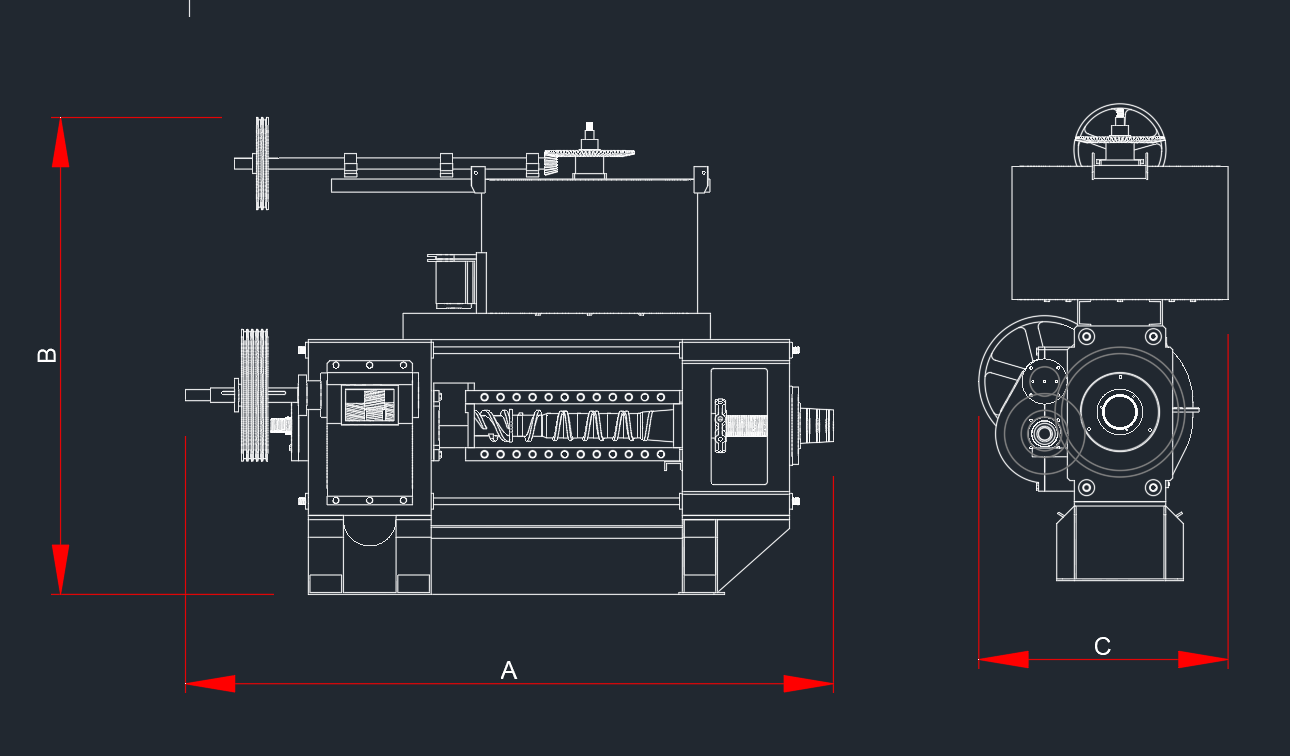

(A)LENGTH
3600 mm
(B)HEIGHT
2450 mm
(C) WIDTH
1420 mm
POWER
3 Phase 60 HP 960 rpm
WEIGHT
5000 KG
GEAR
MS EN8 353 E24
BEARING
ZWZ NTN NBC
ALL SHAFT
EN8D
WORM ASSEMBLY
MS/HARD FACE
CONE
MS/HARD FACE
COOKER
STEAM JACKETED/ MULTISTAGE COOKER
